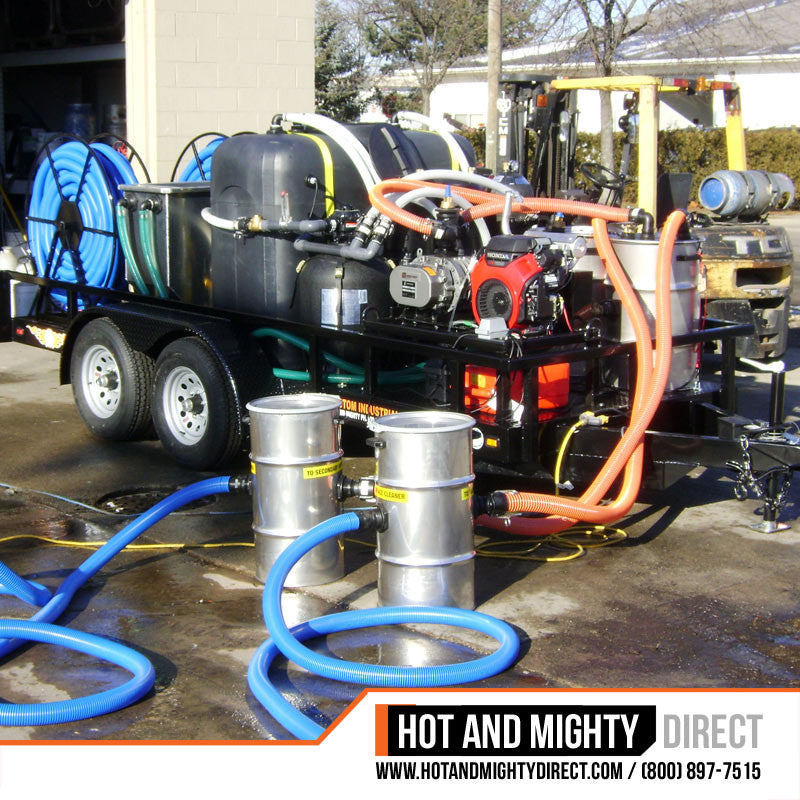

Open deck wash, recovery and recycling trailer by Hot And Mighty (similar build shown)

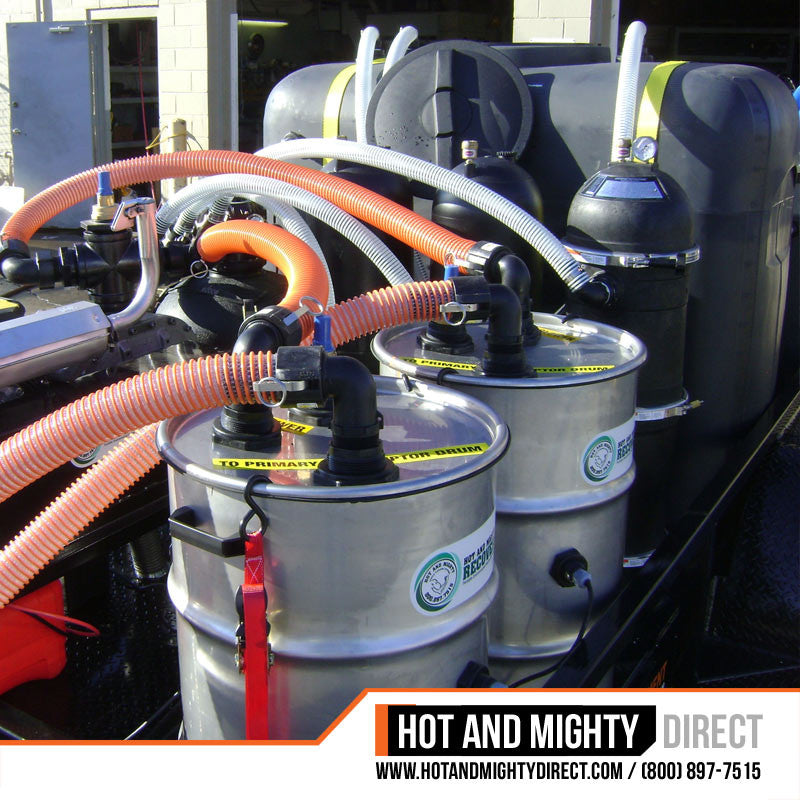

Recovery interceptors and filtration on an open deck recycling trailer by Hot And Mighty (similar build shown)

Open TA4-MV13-255 WR2 3505

$59,870.00

Built to order and delivered nationwide. We keep trailers and washers in stock for quicker builds, and every quote includes your build time.
Delivery: pickup in South Bend, IN with free training for your crew, or freight shipping to your location.
Questions? Call 800-897-7515 or text us.

Photos show a similar Open TA3 MV23-455 recovery and recycling build. This package adds a hot water pressure washer, and every unit is built to spec, so your trailer may look different.

A complete single-operator wash, recovery and recycling system on one trailer: a 3,500 PSI hot water washer, a 250 CFM vacuum recovery system and 20 GPM recycling to 20 microns, built on a 6' x 18' tandem-axle open deck.

Vacuum up wash water with the MV13-255 Mighty-Vac and a 21" vacuum surface cleaner, even at up to 200 feet of hose. The water runs through a stainless sand catcher, a 30-gallon interceptor and the HM Oil Harvester, then cartridge and multi-media filters clean it to 20 microns so you can wash with it again. The system recovers up to 98% of your wash water and keeps runoff out of storm drains.

WASH SYSTEM
Application	Hot and cold water
Pressure / flow	3,500 PSI, 4.7 GPM
Engine	624cc Rehiko CH620 OHV gasoline
Pump	General TSF belt drive
Burner	12V burner system, adjustable temperature control
Controls	Factory preset unloader, adjustable high-pressure detergent injector, hour meter
Construction	Powder-coated frame, stainless steel coil wrap and heat exchanger
Hose reels	High-pressure reel with 200' of 7,000 PSI blue non-marking hose; low-pressure reel with 100' of 3/4" fill line plumbed to the tank with float
Accessories	(4) high-pressure nozzles, lance and trigger gun combo

WASH WATER RECOVERY SYSTEM
Vacuum	Mighty-Vac MV13-255, 250 CFM
Vacuum engine	390cc Honda
Generator	6,000 W, 60 Hz
High water shut-off	Yes
Primary interceptor	(1) DOT-approved 15-gal stainless sand catcher
Secondary interceptor	(1) DOT-approved 30-gal stainless tank with slide-out pre-filter and auto pump-out
Vacuum hose	200' crush-resistant heavy-duty 2" ID hose on (1) vacuum hose reel
Surface cleaner	(1) 21" vacuum surface cleaner
Sand berms	39" x 11" sandbags (sand not provided)

WASH WATER RECYCLING SYSTEM
Recycling rate	20 GPM, filtered to 20 microns
HM Oil Harvester	All-aluminum 150-gal tank with sloping sides; easy clean-out ports with bottom shut-off
Coalescing grid pack	Reusable; catches oil and suspended solids
Cartridge filters	(2) 150 sq ft, with auto-bleeder valves and replacement filters
Multi-media filter	Yes

WATER TANK
Capacity	300-gal baffled poly tank
Drain	2" quick dump valve

TRAILER SPECS
Style	Steel frame open trailer
Size	6' wide x 18' long
Axles	Tandem, 6,000 lb each (TA4)
Brakes	Electric
Flooring	1/8" steel diamond plate or treated wood
Wheels	Aluminum or steel
Light hookup	Bargman

How ordering works: every unit is built to spec and delivered nationwide, or pick it up with free training. Flooring, wheels and options are set to your order, and build time and freight are quoted case by case with every order.

Text 574-233-9111 or call 800-897-7515 for a quote.

Training

In person face to face training on your new equipment at our facility in South Bend, IN on the day of pickup for as many of your employees as you care to bring. Or, we can offer to do a live video call to walk through your new system.

Equipment Pick-up Or Delivery

Two options, you may collect at our facility in South Bend, IN or we can arrange to have a third party transporter deliver your new equipment. You are responsible for any fees associated with transport.

Warranty

ALL warranted against manufacturer defects

5 Year coil warranty
2 year Honda motor warranty
5 year back end pump warranty
1 Year on trailer
Lifetime warranty on head
90 Day warranty on wear parts
